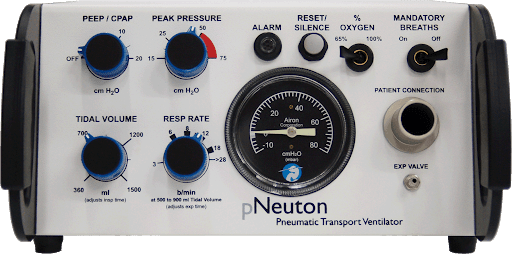

Airon pNeuton A

Airon’s pNeuton A ventilator is designed for quick set up, making it easy to use for new healthcare workers. This fully pneumatic system is MRI compatible, does not require electricity to operate and will function indefinitely if the power goes out. This also allows for unlimited storage in a disaster cache without maintenance.

The pNeuton model A is a transport ventilator with built-in CPAP (Continuous Positive Airway Pressure)  ideal for critical care adult or pediatric patient support in hospital environments.

With simple-to-use controls – Tidal Volume, Respiratory Rate, and Pressure Limit – pNeuton A can provide volume-targeted or pressure-limited ventilation. The built-in high output demand flow CPAP system insures critical care ventilation needs are optimized for spontaneous and mandatory breaths.

Use in pandemic scenarios

Expired respiratory gas:
Bacterial/Viral Filters perform as special low flow resistance filters when placed on the exhalation valve.

Non-invasive application for CPAP or NIV:
Apply with a non-vented full face mask, available in 3 sizes as a disposable, single patient use mask. Note: Do Not use a CPAP mask with an internal exhalation port.

Support for busy staff:
Both the pNeuton A and pNeuton mini have built-in remote alarm capability with audible/visual patient disconnect alerts No need to filter patient gas flow: Inspiratory gas flow is a continuous positive flow without interruption during the expiratory phase.

Rugged patient breathing circuit:
Manufactured with critical care grade materials, these circuits will withstand the extended continuous use many health care systems have implemented.

One Device for OR, ICU, MRI, and More



Fully pneumatic and operates without the need of batteries or electrical power, the pNeuton A can help you care for the most difficult patients, from the emergency room to special procedures, MRI to the operating room and intensive care unit, wherever the patient may be located.

The pNeuton A Ventilator has an integrated all-pneumatic alarm system with remote alarm capability that keeps you alerted to patient circuit disconnects and low gas supply from bedside to MRI observation room and back to the patient bedside.

Noninvasive or invasive ventilation broadens the clinical application and prepares the clinician to meet patient needs during transport..

The pNeuton ventilators/CPAP systems are critical care devices designed for use by healthcare professionals under the direction of a physician or healthcare provider.

Core Benifits

  • Provide invasive or non-invasive patient support
  • Low patient Work of Breathing with peak flow of up to 140 L/min to meet patient needs
  • 100% or 65% to match patient oxygen requirements
  • Switch from mask CPAP to invasive ventilation seamlessly and without interruption
  • Low-profile, easy-seal mask reduces facial pressure

Benefits for your Budget

  • Two oxygen levels; conserve oxygen with 65% setting
  • 60-minute CPAP run time on a “E” cylinder
  • Demand flow CPAP system with minimal wasted oxygen
  • Standardized economical patient circuits save on operating costs
  • No batteries or electronics decrease maintenance cost

Benefits for the Healthcare Provider

  • Calibrated CPAP and oxygen controls for easy operation
  • MRI conditional up to 3 T – place right next to the scanner with remote alarm output for the control room
  • Built-in CPAP/PEEP system with automatic sensitivity for changing patient needs; no need for external CPAP valves
  • Manometer to monitor patient pressure and effort
  • Monitor CO2 with invasive/non-invasive ventilation
  • Use the Safe-T-Vent Medication Nebulizer System and fill the nebulizer without losing CPAP
  • Use the bacteria / viral filter to protect caregiver from patient exhilation
  • Built-in patient disconnect alarm with remote output to nurse call systems
  • Oxygen powered – no batteries to change
  • Rugged and lightweight (6.5 lbs / 3 kg)

pNeuton Model A P/N 20052
pNeuton Model A StartUp Kit P/N 20055

Description

  • Pneumatically operated for use on pediatric and adult patients > 23 kg
  • Demand flow system for spontaneous breathing to 140 L/min
  • Pressures displayed on manometer
  • Modes of Operation: CMV, IMV, CPAP, Pressure Limit
  • Mandatory breath flow rate is fixed at 36 L/min
  • MRI compatible: up to 3 T static field strength, 6.9 G/cm spatial field gradient, 300 V RF power, shielded, no gauss line restriction
  • Weight: 6.5 pounds (3 kg)
  • Dimensions: 5″H x 10″W x 7″D (13 x 25 x 18 cm)
  • Input gas requirement: 55 psi ± 15 psi (3.8 bar ± 1 bar)
  • Classification according to MDD 93/42/EEC: IIb
  • Meets International Standards for transport ventilators:
    • ASTM: Ventilators Intended for Use in Critical Care (F 1100-90)
    • ISO: Lung Ventilators for Medical Use, Part 3 (EN 794-3:1999)



Control Settings

Mandatory Breaths: ON or OFF
Respiratory Rate: 3 to 50 bpm
Tidal Volume: 360 to 1,500 ml
Peak Pressure: 15 to 75 cm H2O (mbar)
PEEP/CPAP: 0 to 20 cm H2O (mbar)
Oxygen: 100% or 65%

Audible and Visual Alarms

  • All pneumatic alarm system (no batteries)
  • Patient circuit disconnection
  • Automatic reset when alarm condition resolves
  • 22 Second Activation
  • One minute silence / reset button
  • Low oxygen inlet pressure (below 30 psi)
  • Remote alarm output
Part Number Description
110-20055 pNeuton A Ventilator Start Up Kit including pNeuton A Ventilator, Model A start-up kit, (includes Model A ventilator, bed rail mount, 8 foot oxygen hose, box of patient circuits)
110- 21058 Manifold system MRI compatible, with shut off valves for use with mobile stand
110-21055 Manifold system, MRI compatible, for use with mobile stand includes 2 O2 regulators and O2 hoses
110-21001 Stand, Mobile, MRI compatible includes mount and E-cylinder holders
110-21016 Bed Rail Mount, Model A
Part Number Description
P/N 110 – 58001 Adult/Pediatric Patient circuit, disposable, single-use, 6 ft long, box of 15
P/N 110 – 58006 Adult/Pediatric Patient circuit, disposable, single-use, 6 ft long, box of 15 with expiratory filter
P/N 110 – 58011 Adult/Pediatric CPAP patient circuit, disposable, single-use, 6 ft long, box of 10 with large mask and head strap
P/N 110 – 58021 Adult/Pediatric CPAP patient circuit, disposable, single-use, 6 ft long, box of 10 with large mask and head strap and expiratory filter
P/N 110 – 58051 Adult/Pediatric patient circuit, disposable, single-use, 8 ft long, box of 15
