MONITORING FOR NEONATAL PATIENTS ON CPAP/NHF THERAPHY

  • Measures pressures in both open and closed systems.
  • Monitors and displays mean airway pressures from 0.0 to 35.0cm H2O.
  • Intuitive user interface provides adjustable audio and visual high and low pressure alarms.
  • High Pressure Alarm: Provides a high pressure audible alarm when device detects pressure 0.1cm H2O above preset high limit and the yellow LED up arrow blinks. The high alarm settings are from 6.0 to 35.0cm H2O. Alarm resets when the desired pressure is resumed.
  • Low Pressure Alarm: Provides a low pres-sure audible alarm when the device detects pressure 0.1cm H2O below preset low limits. The yellow LED down arrow blinks when there is a low pressure alarm event. Low alarm settings are from 0.1 to 28.0cm H2O. Alarm resets when the desired pressure is resumed.Until now, the varying product needs for hospital-grade ventilators have been met separately with different devices. This can require extra time and costs to the hospital, where staff will need to be trained to be highly competent across a wide array of devices.

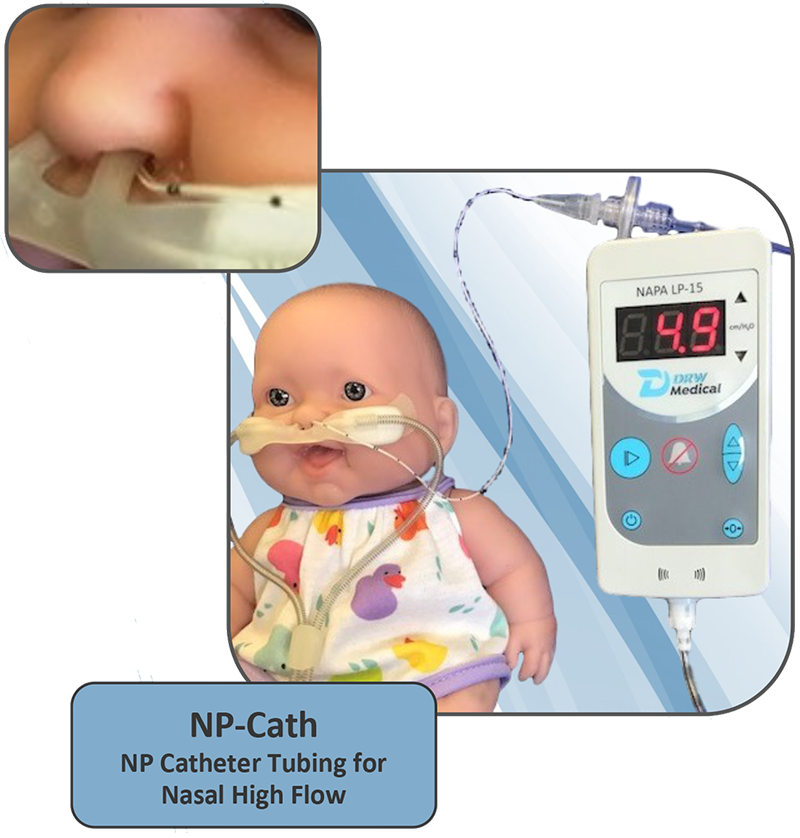

The NAPA Neonatal Airway Pressure Monitor alarms when the mean airway pressure falls outside of the user-selected high and low alarm limits.

PRODUCT SPECIFICATIONS:

Dimensions: H-5.0”, W-2.5”, D-1.24”
Weight: 180g
Display Screen: LED / W-1.5” x D-0.75”
Tubing Fitting: Luer and Quick Connect

PERFORMANCE SPECIFICATIONS:

High Pressure Alarm: 6.0 – 35.0 cm H2O
Low Pressure Alarm: 0.1 – 28.0 cm H2O
Accuracy: +/- 0.5 cmH2O or +/- 2%, whichever is greater
