NeoForce NeoPIP

The NeoPipTM Neonatal Resuscitator is intended for emergency manual resuscitation of infants. The device is used in conjunction with a flow meter to control gas delivery rates and an optional blender. When used with the breathing circuit, the device will provide positive end expiratory pressure (PEEP) support. As a safety measure, an adjustable maximum pressure relief valve (Pop-Off) is also provided.

The NeoPIP™ Infant Resuscitation Unit is intended for emergency manual resuscitation of infants. The device is used in conjunction with a flow meter to control gas delivery rates and an optional blender. When used with the NeoPIP™ breathing circuit, the device will provide positive end expiratory pressure (PEEP) support. As a safety measure, an adjustable maximum pressure relief valve (Pop-Off) is also provided.

The NeoPIP Infant Resuscitation Unit is a manually operated, gas powered device intended for controlled and accurate resuscitation of neonates and infants in the clinical environment.

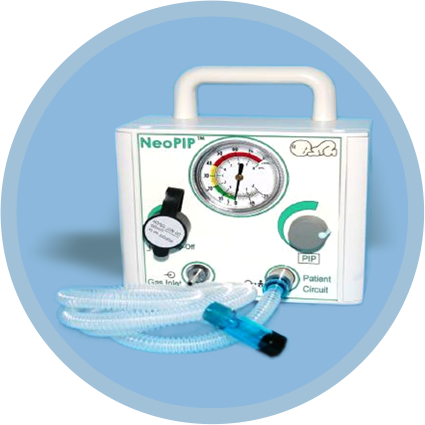

NeoPIP™ Infant Resuscitation Unit

Product Specification

Maximum Pressure Relief  ____________________________________User selectable 5 – 80 cm H2O/mbar Factory set 40 cm H2O/mbar
Peak Inspiratory Pressure (PIP) _____________________________________User selectable 2-80 cm H2O/mbar
Positive End Expiratory Pressure (PEEP) ____________At 5 L/min PEEP = 0 to 10 cm H20 |At 10 L/min PEEP = 3 to 17 cm H2O | At 15 L/min PEEP = 6 to 20 cm H2O
Manometer Range _______________________-20 to 80 cm H2O/mbar | -2 to 7.8 kPa | Color coded
Gas Inlet flow range __________________________0 – 15 LPM (based on flow meter used)
Oxygen Concentration  ___________________________________________________________________ 21 – 100% (based on blender setting used)

Height   ______________________________________________________________________________ 18 cm (7 in)

Width  _______________________________________________________________________________ 20 cm (8 in)

Depth  ______________________________________________________________________________ 9 cm (3.5 in)

Weight  ______________________________________________________________________________ 2 kg (4.5 lbs)
